Description
Specification:
| Model | Power(KW) | Power (HP) | Diesel Engine | Loading Pond Area(㎡） | Float Qty(pcs) | Ability of Increase Oxygen (Kg/h) | Load QTY per 20GP container | Load QTY per 40HQ container |

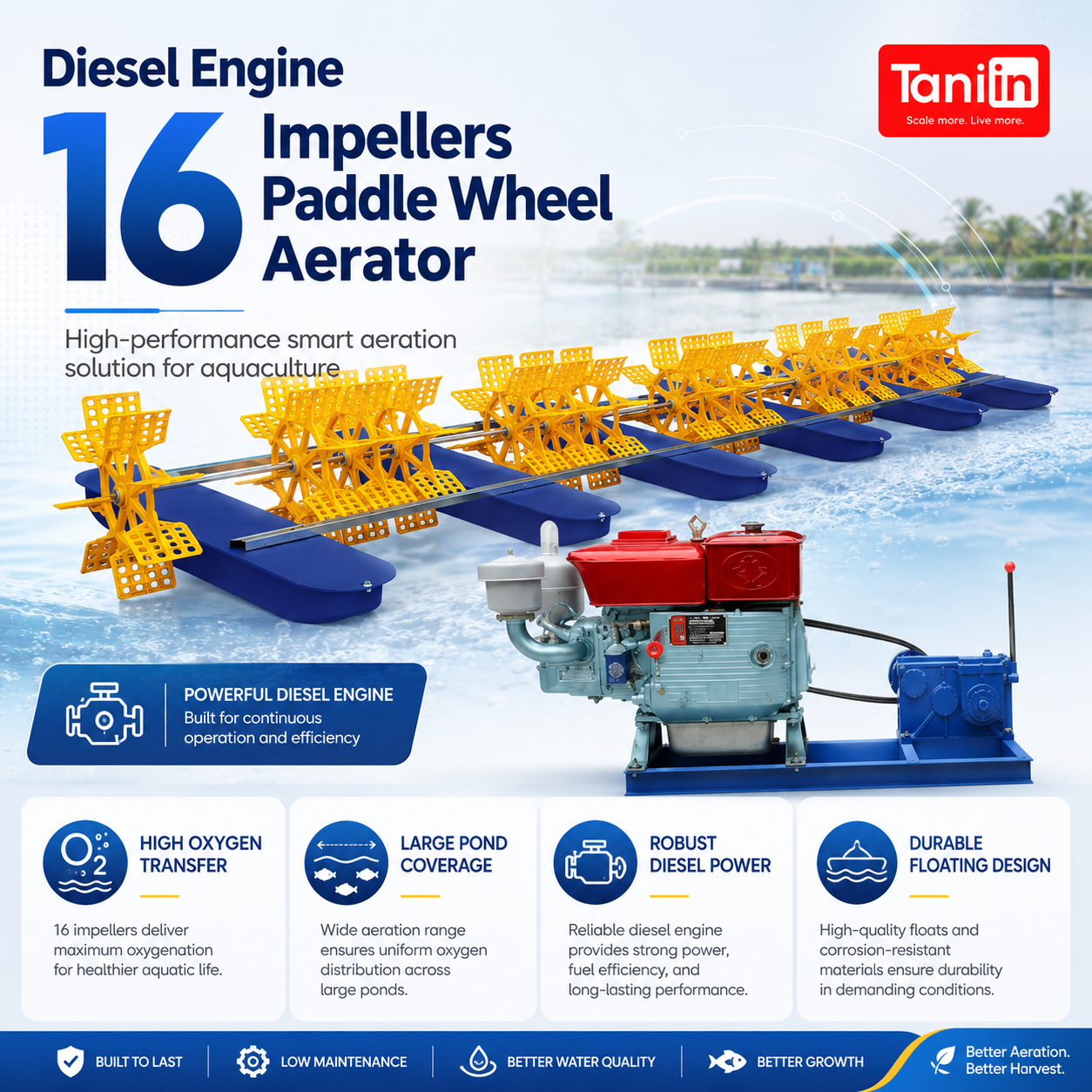

| DE-16 | 12 | 16 | Changfa Brand CF1100/ CF1100N/CF1100NW | 1000-8000 | 6/7 | ≥5 | 26pcs | 65pcs |
| Impeller RPM | 100-110 | Impeller QTY(pcs) | 16 |
| Float QTY(pcs) | 6 | Size and weight per unit | 1.046cbm, 156kg |

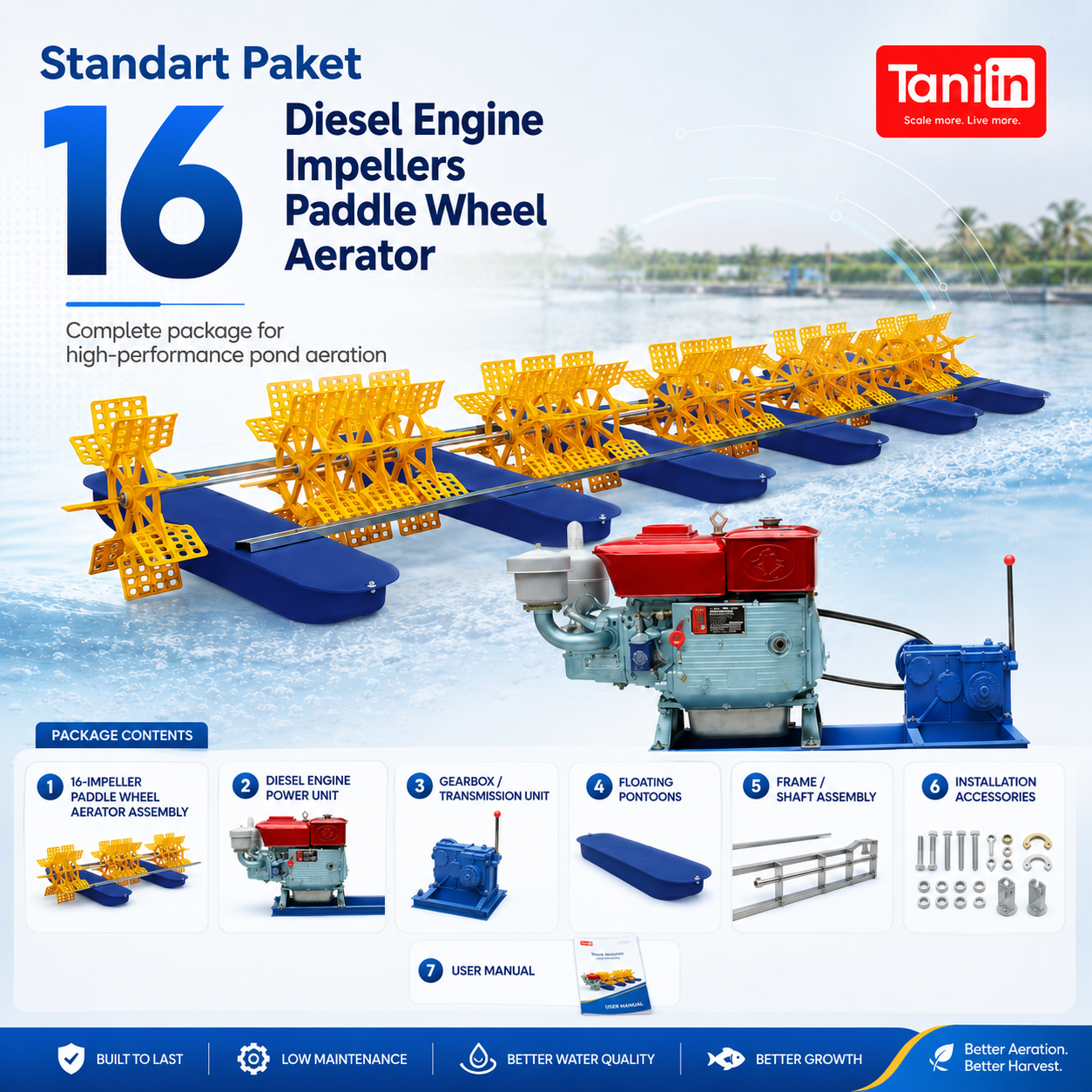

| Accessories | Quantity(pcs) | Specification |
| 1. Diesel engine | 1 | 16HP Changfa diesel engine. |
| 2. Reducer | 1 | Bevel Gear Style, Cast Iron Body. |
| 3. Impellers | 16 | 1. Unique one-piece design with forified structure. 2. Material: Virgin PP or Nylon with UV resistance(100% new material) 3. Dimension:210*670mm Net Weight: 2.5Kg |
| 4. Float Boat | 6 | 1.Integral blow molded formation, no water seeping problem 2. Excellent in withstanding larger impact, corrosion free and weathering 3. Material: Virgin HDPE with UV resistance(100% new material) 4. Dimension:1750*330*210mm Net Weight:7KG |
| 5. Motor Cover | 1 | Material: Virgin HDPE with UV resistance(100% new material) Net Weight: 2.0KG |
| 6. Movable Joint | 2 | Cast Iron or 45# steel with high quality bearing and reinforce cross |
| 7. Transmission shaft | 1/2/3 | Material: 304 Stainless Steel Dimension:25*830mm |
| 8. Frame | 2 | Material: 304 Stainless Steel |
| 9. Bracket bearing | 1 | Material: Cast iron with high quality bearing |
| 10.Bearing Base | 5 | 1. Adjustable 3 in 1 plastic bearing, easy for replacement. 2. No aging or cracking problem for the specially made nylon body. 3. Needle Bearing in the middle, low force of friction. 4. Long working life, 2 times than normal type bearing |
